The Coast Guard makes sure it's 'Always Ready' for an oil spill

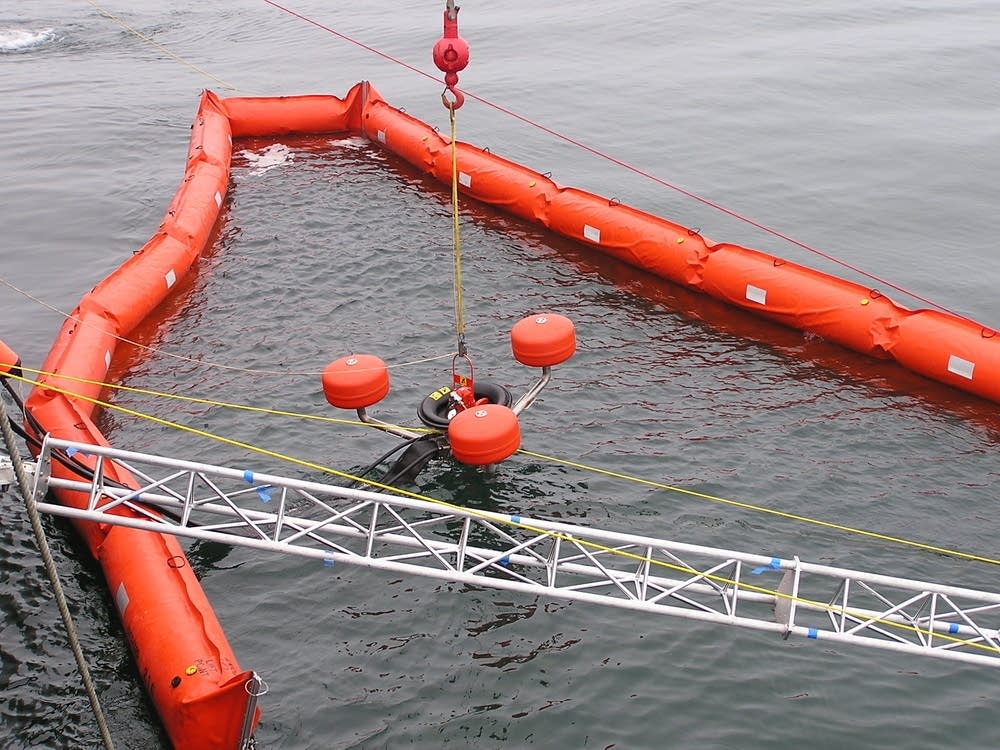

System deployed
The Coast Guard's Spilled Oil Recovery System (SORS) is deployed along the side of the ship Alder.
MPR Photo/Bob Kelleher

It's a spooky morning on Lake Superior. About two miles off Duluth's Aerial Lift Bridge, the Coast Guard Cutter Alder is socked in by fog.

Superior is dead quiet and smooth as a swimming pool. These are perfect conditions for mopping up an oil spill.

Jeremy Mitchell
Petty Officer Jeremy Mitchell is based in Fort Dix, New Jersey.
MPR Photo/Bob Kelleher

Jeremy Mitchell directs a dozen guardsmen on deck. They're pulling a three-armed metal pump and folded orange fabric from pickup truck-sized aluminum crates.

"Basically, it's a system that's installed in the ship," Mitchell explains. "We have put it together, pull it out of the cargo hold, so that we can build the system as we're en route to the oil spill."

Create a More Connected Minnesota

MPR News is your trusted resource for the news you need. With your support, MPR News brings accessible, courageous journalism and authentic conversation to everyone - free of paywalls and barriers. Your gift makes a difference.

If oil spills on Lake Superior, or even parts of Lakes Michigan or Huron, the Alder could be the first responder. Much of the oil spill equipment is newly developed, although it's not all high tech.

It takes three sailors and a sturdy rope to swing a 42 foot aluminum outrigger arm off the Alder's port side. That arm will anchor a floating boom. It's like an orange inflatable wall that forms into a horse-shoe shape on the water surface. Before it's dumped overboard, the crew inflates the boom like an air mattress with a blast from a heavy duty leaf blower.

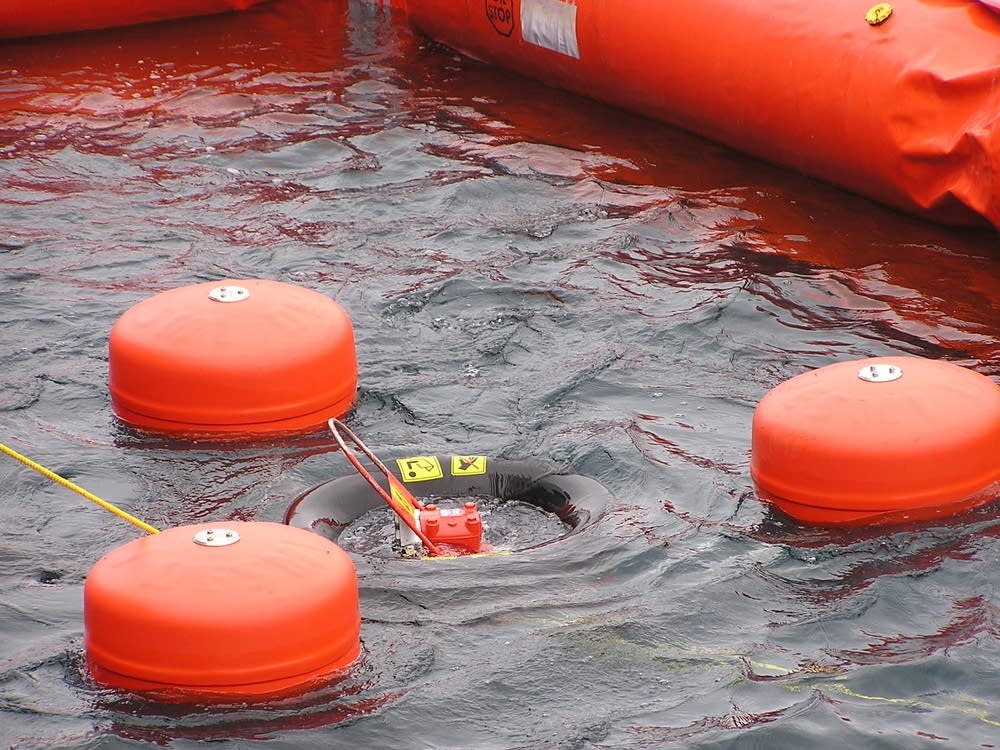

The skimmer
The heart of the spill recovery system is the skimmer, which sucks up oil or fuel trapped within the orange sweep boom. The skimmer can remove up to 440 gallons per minute, which is pumped into a large floating storage bag dubbed the sea slug.
MPR Photo/Bob Kelleher

"You're looking at about maybe a four hour max - four to five hour max - with a trained crew to set this system up," Mitchell says. "We're fortunate enough to have it actually installed in a cargo hold on the ship, so it's on the ship at all times."

With the floating orange boom open on one side, Mitchell says the ship cuts through a slick, forcing oil into the open mouth of the boom.

"Our boom is set up in a "u" configuration, and it just turns it into a big funnel," says Mitchell. "And, as the oil comes in, you're going to try and build up a nice pocket that surrounds that skimmer." The skimmer is that three-armed contraption. It can suck over 200 gallons a minute, separating the oil, while chewing up floating debris like aluminum cans, vegetation, or dead birds.

"You're going to punch in your skimmer, and try and drain that pocket down as the ship is going through it," Mitchell says.

Today, there's no oil on the water. If there were, it would be pumped through a wide rubber hose to something that looks like a floating orange blimp.

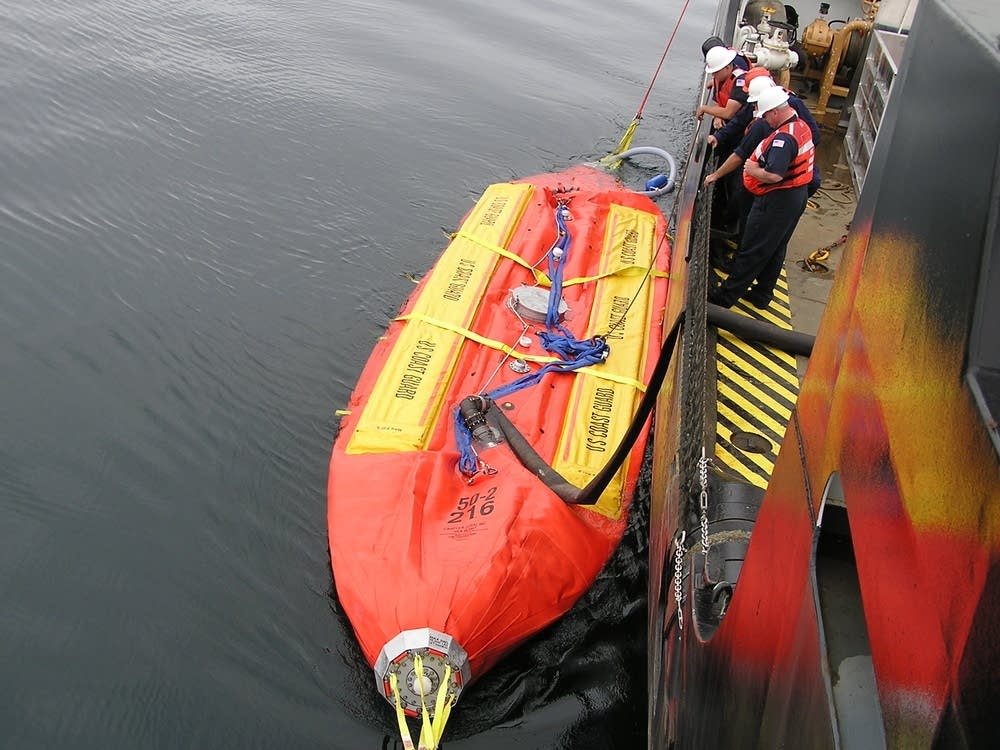

Sea Slug
Spilled oil or fluid is pumped into a floating storage bag called the Sea Slug. The Alder carries four of the bags, which, combined, can hold almost 80,000 gallons of a water/oil mixture. The bags can be drained at sea into other maintenance boats.
MPR Photo/Bob Kelleher

"They call them 'Sea Slugs,'" Mitchell says. "They're a big bladder. While this vessel is out skimming, it will have the bladder on the side. Once that bladder gets filled up, a tug will come along side, gather that bladder, come in with a brand new one, and take that one to shore so we can off-load it."

The Alder has carried this system for four years, and so far, it's never been pressed into real service. But Mitchell says there's a lot of cargo on the Great Lakes, and spills can happen.

What's important, he says, is that the crew is trained and ready. That's not easy to maintain as the crew turns over. Alder Captain Kevin Wirth says half the crew is new since last year.

Kevin Wirth
LCDR Kevin Wirth, Commanding Officer of the USCGC Alder
MPR Photo/Bob Kelleher

"This is a mission we don't typically do, but we're capable of doing," Wirth says. "So we need to train on that, and we spend about a week a year as well as some time for individuals to go to schools away from the ship to learn how to do what we did today."

Wirth says the Alder was designed with the massive Exxon Valdez oil spill in Alaska in 1989 in mind.

"When the cutters were originally designed and built, it was the early 90's," Wirth says. "After Exxon Valdez, they thought it would be a good capability for these ships to have would be to skim and recover oil. So that was one of the considerations in the design and building of this ship."

But there are limitations. If a leaking ship has grounded, there may not be enough water depth for the Coast Guard cutter to operate. Also particularly rough seas can overwhelm the system.

retrieving the sea slug
Deploying and retrieving the oil spill cleanup equipment is largely a hands-on job. Here a group of Coast Guard sailors retrieve the oil containment bag called the sea slug, by dragging it back aboard ship.
MPR Photo/Bob Kelleher

"The deployment of that will depend on the event," says Wirth. "We're training for a mission set that we wouldn't know when we'll need to use it. We just need to be ready to do it. So, true to the motto "Semper Paratus," right? We're training to be ready to deploy pollution recovery gear when it's ready, when it's needed."

"Semper Paratus," the Coast Guard motto. It means "always ready." And for now, at least, that's true for the crew of the Alder.
